OUR TECHNICAL SCOPE (continuously evolving)



We are perfectly qualified to deliver following heavy duty fan technical  scope :

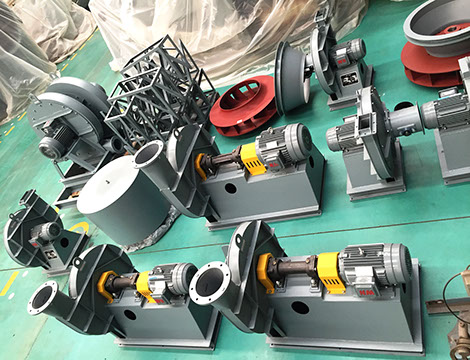

  • Centrifugal or axial fan type
  • Any fan-arrangement:

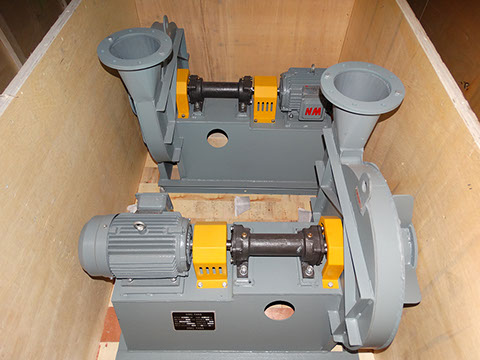

  • Direct drive (close coupled or with flexible or hydraulic coupling)
  • Indirect drive (V-belt transmission)
  • Gearbox-driven
  • Controlled by any of the following drives:
  • Electric or hydraulic
  • Diesel-engine
  • Steam turbine
  • Hybrid: Combination of 2 of the abovementioned drives
  • With a driven power up to 5000 kW

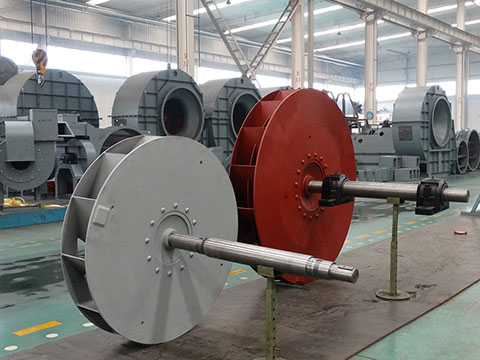

  • With an impeller-size (diameter) upto:
  • 4,5 m., diameter, in single or double inlet, for centrifugal fans
  • 9 m. diameter, for axial fans
  • For operational temperatures upto 900 °C
  • For each type of fluid, such as for instance:
  • Ambient air
  • Erosive gas (presence of abrasive dust)
  • Sticky gas (presence of sticky dust)
  • Toxic gas
  • Corrosive gas
  • Explosive gas
  • High temperature gas
  • In any kind of materials, such as for instance:
  • Carbon steel
  • Special alloy steel with high mechanical performance
  • Abrasion-resistant steel (hardox, creusabro, VAUTID)
  • Highly corrosion-resistant steel (Stainless steel, duplex, inconel, hastelloy, titanium
  • Special coatings (ebonite, sakaphen)
  • Composite or synthetic materials (PVDF, PP, FRP)
  • Aluminium, Cupper
  • With any kind of surface-finish, such as for instance:
  • Hot dip galvanisation
  • Special corrosion- or abrasion-resistant paintings or coatings
  • In any finished colour or combination of colours

Our scope also covers a wide range of louvers-dampers and high efficient vane-control dampers, upto very large sizes:

  • surfaces well over 10 m2
  • diameters well over 2 m
